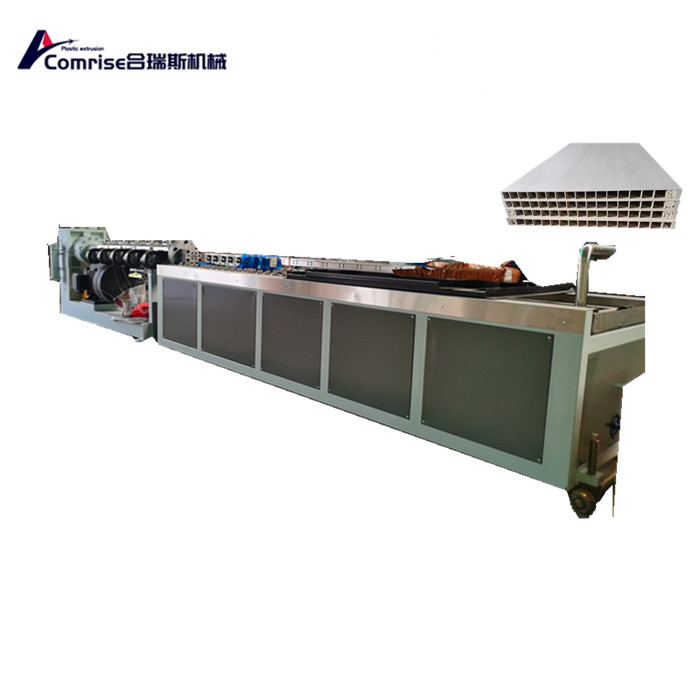

The PVC door production line is mainly used to produce PVC plastic profiles with different cross-sectional shapes and heights. The surface of PVC profiles/panels can be treated by printing and coating with glossy oil, heat transfer printing, or lamination, which can be used for kitchens, bathrooms, balconies, and more.

Process diagram of plastic PVC WPC door:

Mixer → Loader → Extruder → Mold → Vacuum Calibration Platform → Cooling Bracket → Dragging

Machine → cutting machine (with dust collector) → stacker crane → packaging → crusher, pulverizer (waste)

1.SJZ92/188 Spiral feeding machine

Technical parameters:

a. Main motor power: 1.5kw

b. Pipeline length: 1100 millimeters

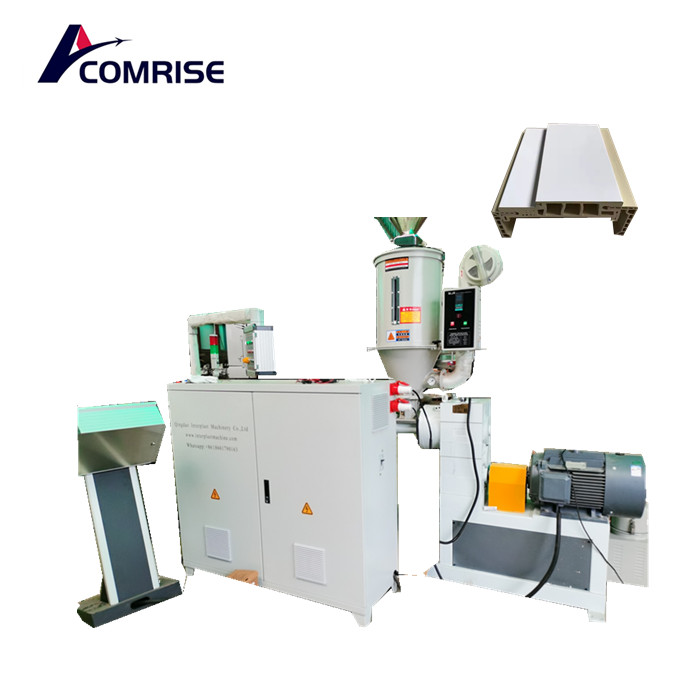

2.name: SJZ92/188 cone extruder

Technical parameters:

a、 Main motor: 110KW Siemens/TECO brand.

b. Screw tube: 38CrMoAl, hardness HV950 or higher,

High efficiency and long service life.

3.Name: Extrusion and Calibration Mold

Technical parameters:

3Cr17, forged, quenched and tempered, has the characteristics of wear resistance, corrosion resistance, high strength, high precision and long-term use

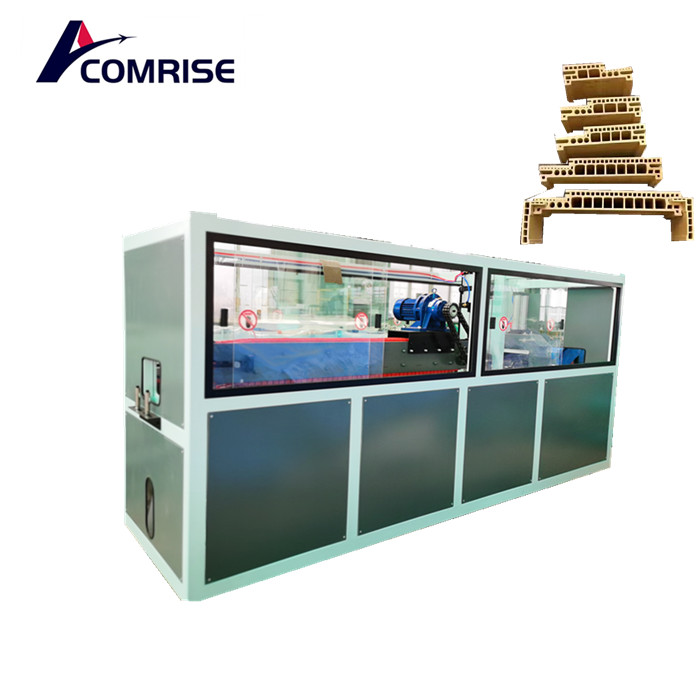

4.Name: Polyvinyl chloride wood plastic door panel calibration

Technical parameters:

a. Up and down, left and right manual adjustment

b. Equipped with an infrared device to ensure synchronization between speed and traction speed.

5.Name: PVC wood plastic door panel tractor

Technical parameters:

a. Rubber blocks are soft materials.

b. We chose Geax motors and controlled two sets of motors through a frequency converter, which means confirming the precise operation of both arms.

6.Name: PVC wood plastic door panel cutting machine

Technical parameters:

a. Cylinder controlled movement, fixed length cutting, high-precision cutting power using Autonics instrument for fixed length: 3kw, equipped with dust collection device

b. Equipped with electrical devices to ensure accurate cutting
